UpRAM – The Electric cals Pusher for uphole deployments
Powering a safer, quieter and easier way to push probes uphole
When upholes are the only access into voids, manual pushing can be physically demanding, time-consuming and dangerous. Also, a Scissor Lift or IT Basket is not required.
The GeoSight UpRAM Electric Pusher provides a powered alternative, with controlled, variable-speed power pusher rather than relying on manually deploying a heavy instrument uphole.
Powered by DEWALT FLEXVOLT® batteries, the UpRAM combines portability with up to 800 N (180 lb) of pushing force and speeds of up to 38 m/min (125 ft/min). Its compact, foldable design makes it easy to transport and store between jobs.
Powering a safer, quieter and easier way to push probes uphole
When upholes are the only access into voids, manual pushing can be physically demanding, time-consuming and dangerous. Also, a Scissor Lift or IT Basket is not required.
The GeoSight UpRAM Electric Pusher provides a powered alternative, with controlled, variable-speed power pusher rather than relying on manually deploying a heavy instrument uphole.
Powered by DEWALT FLEXVOLT® batteries, the UpRAM combines portability with up to 800 N (180 lb) of pushing force and speeds of up to 38m/min (125 ft/min). Its compact, foldable design makes it easy to transport and store between jobs.
A smarter way to push GeoSight cals uphole
The UpRAM is designed to make instrument deployment easier for operators while reducing the physical demands placed on crews.
With one-person operation, variable-speed hand control and encoder distance counter, operators can maintain greater control over the deployment process safely.
Why choose the UpRAM for instrumentation deployment?
No sweat! No IT Basket! No Scissor Lift!
Easy transportation for remote or difficult-to-access work areas. Solo operation possible
The UpRAM provides powered assistance, helping reduce the wear and tear associated with manual instrumentation deployment.
Reduce physical strain on your crew. Its one-person operating design means crews can complete operations without requiring multiple workers to manually push instruments uphole.
Controlled variable-speed operation
Mining work frequently involves moving equipment between locations.

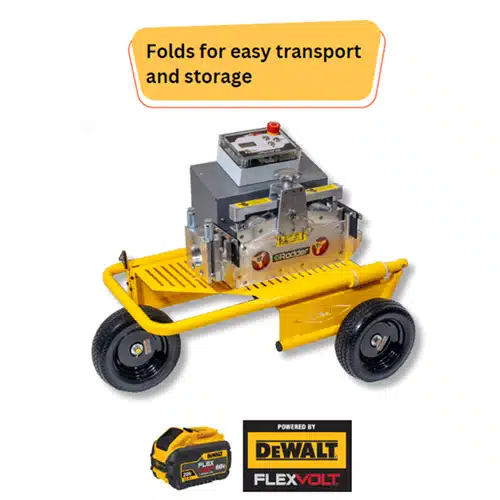

The UpRAM has a foldable handle and folds down for easier transport and storage.
The machine weighs approximately 36 kg (80 lb) and has a folded length of just 965 mm (38 in).

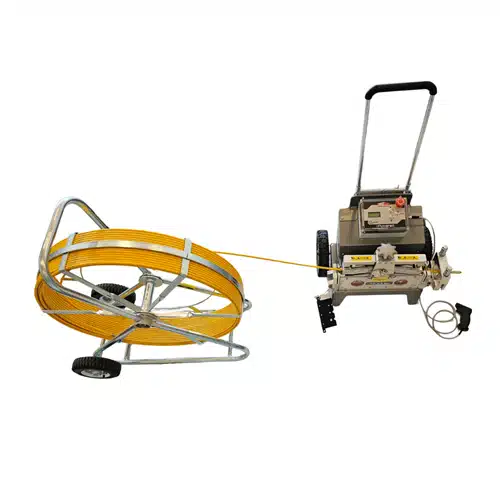

Designed for rolled Fiberglass (rodder) applications
The UpRAM accommodates rodders from:
4.8–22.2 mm (3/16–7/8 in)
Specification
- Maximum pushing force = 800 N (180 lb)
- Maximum pushing speed = 38 m/min (125 ft/min)
- Rodder Diameter = 4.8–22.2 mm (3/16–7/8 in)
- Battery = 20V/60V DEWALT FLEXVOLT®
- Weight = Approx. 36 kg (80 lb)
- Operating height = 1,118 mm (44 in)
- Folded height = 762 mm (30 in)
- Operating length = 1,321 mm (52 in)
- Folded length = 965 mm (38 in)
Benefits at a glance
- Battery powered – 20V/60V DEWALT FLEXVOLT® battery system
- No engine – no petrol engine or engine exhaust emissions
- Quiet operation – helps improve communication around the jobsite
- One-person operation – reduces crew requirements
- 38 m/min maximum speed – designed for efficient rod installation
- Variable speed – greater control during operation
- Foldable design – easier transportation and storage
- Airless off-road tyres – designed for mobility around demanding worksites
- Rod distance counter – helps operators monitor installation progress
- Optional foot pedal – hands-free forward/reverse operation
Order the GeoSight eRodder
Product: UpRAM Electric Duct Rod Pusher
For mining contractors, electrical contractors and infrastructure crews looking for a portable powered duct-rod installation solution, contact GeoSight to discuss the UpRAM.
Get more done. Reduce wear and tear on your crew. Go electric with the UpRAM.
Trusted by mine bosses worldwide
